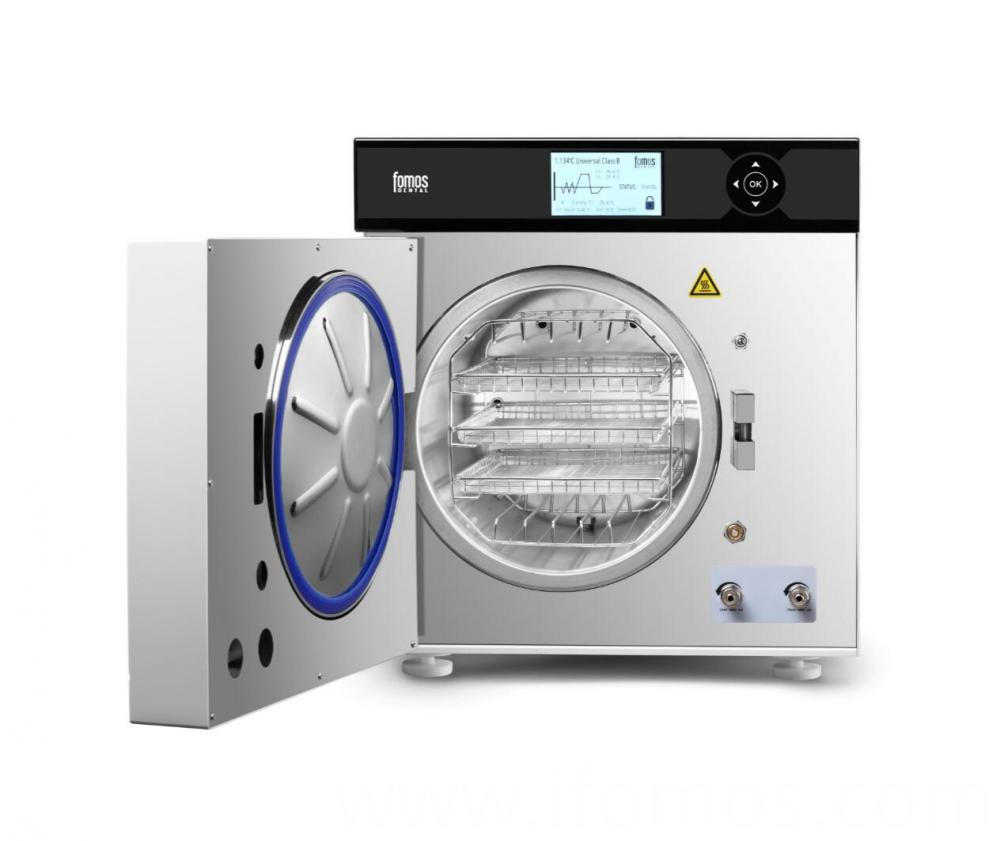

Foster Plus 22L/17L-B-LCD is dual-purpose, not only for instruments, but also for cotton, on dry
condition.Traceability:Built-in paper printer,for traceable sterilization cycle data.Reliable:With an air-conditional heat removal system, for long working life.Fashion:Touch button control panel simplify the operation and bring the fashion design.Safety:Double door's locking-system and mechanical lock with electrical lock ensure the staff’s safe.Versatility
The machine is not only for instruments, but also for cotton, on dry condition.
Specification
1) Chamber inner dimensions:
22L: 250mm×450mm (Diameter × Depth) 17L: 250mm×360mm (Diameter × Depth)
2) Voltage:
AC230V
3) Frequency:
50Hz
4) Power:
1800VA
5) Power fuse:
T12A
6) Water tank capacity: 3.5L
7) Environment temperature: +5℃~+40℃
8) Rated Humidity Range: 30%~75%
9) Net weight: 52Kgs/48Kgs
10) Unit dimensions: 625X438X473mm.
11) Sterilizing Temperature&Pressure:
121℃/(1.0-1.3)Bar
(Under standard atmospheric pressure)
134℃/(2.0-2.4)Bar
(Under standard atmospheric pressure)
Advantage:
1) Microcomputer control system for automatic check, high quality sensor for precise
control.
2) With precise control, the temperature can be controlled within ±0.5 during sterilizing.
3) Touch button control panel simplify the operation and bring the fashion design.4) Clean the inner pipe automatically for avoiding jam after every 300 times of cycle.
5) High quality imported components provides the high performance for end user.
6) New water tank system provides the possibility to clean the water tank avoid the water
tank and lid bent problem in the future.
7) New design steam generator can guarantee that the 99% saturated steam will be
supplied to autoclave chamber.
8) Multi-safety protection system, which can ensure the safety of the operator.
9) Air-conditional heat removal system, prevent the machine from over-heating.
10) Once-forming 304 SUS chamber and Double lock system ensure the safety during
working.
11) The dry time is adjustable according to your willing.Automatic record of the time of
sterilization beginning & end.
12) Adjustable date & time & language mode according to your willing.
13) The machine’s height can be adjusted by adjustable pad.
14) B&D test, vacuum test, convenient for machine behave test.
15) Alarmed automatically when the clean water tank is empty and the used water tank is
full.
